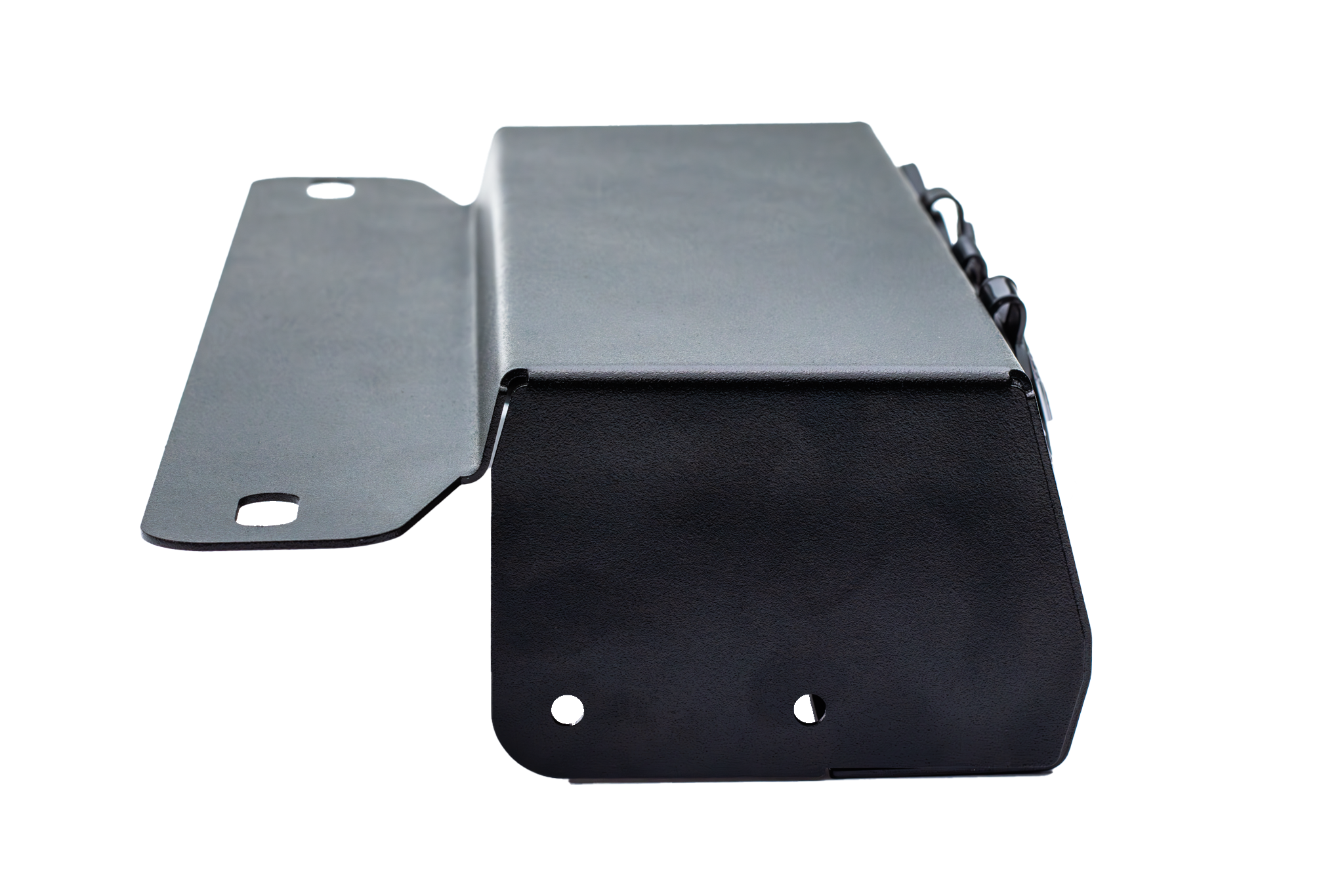

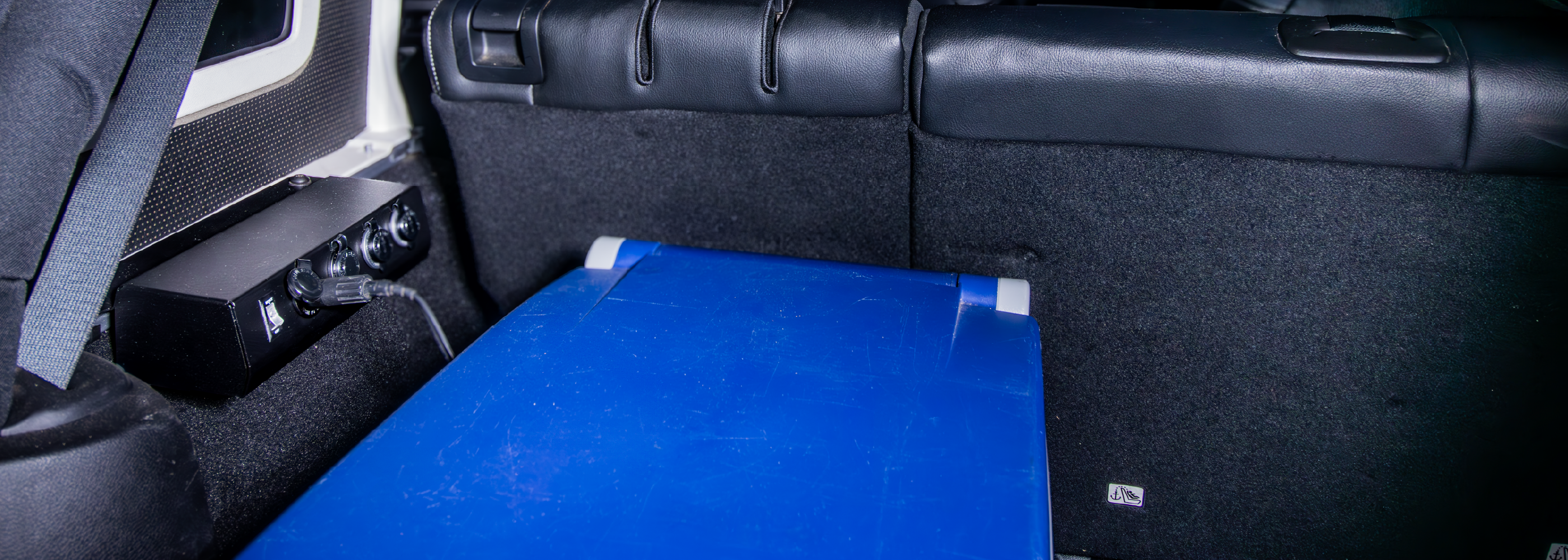

2007-2018 Jeep Wrangler Power Box

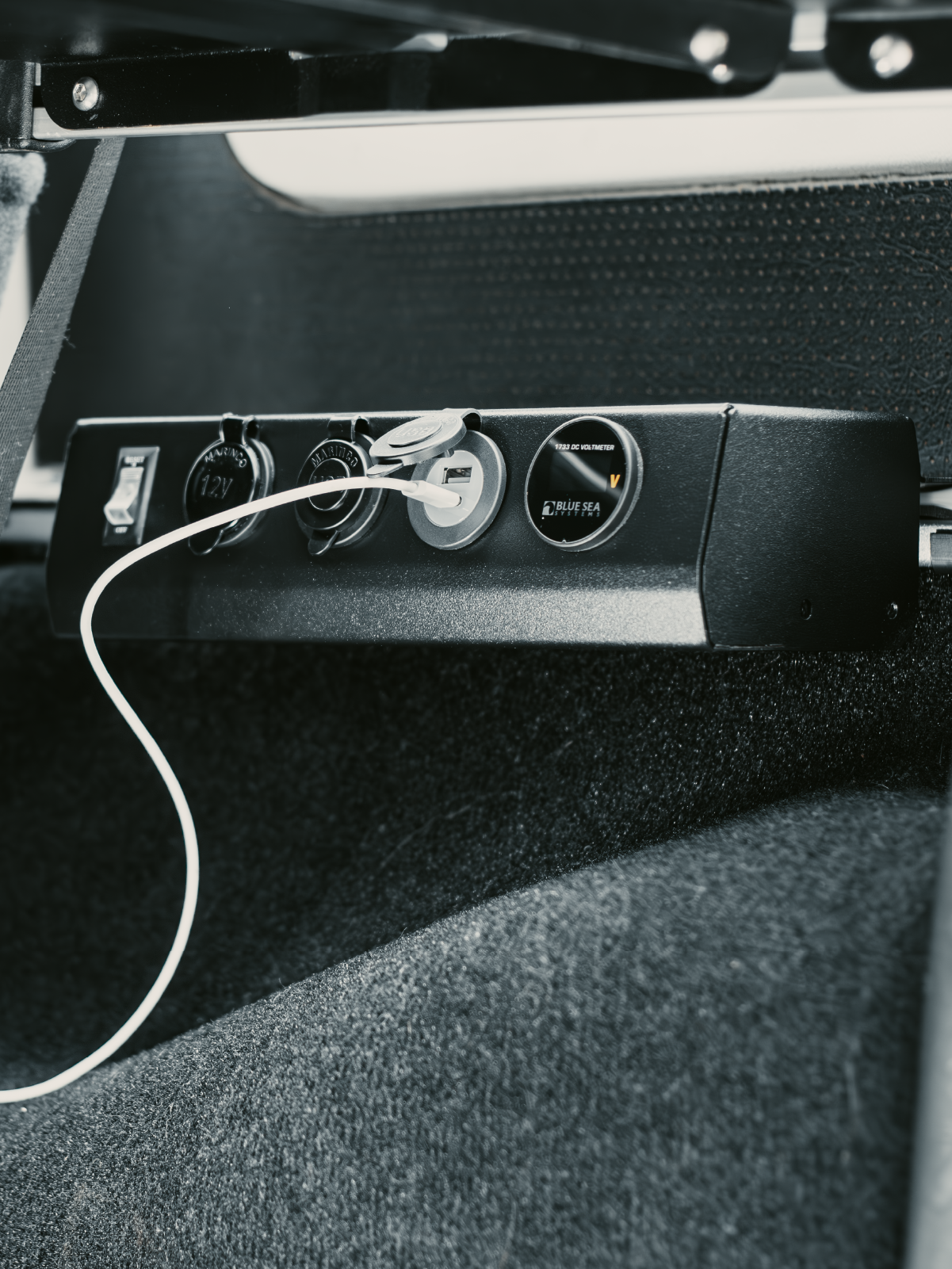

Designed to provide extra 12V power outlets and USB charging ports, perfect for powering all your overlanding and off-road gear. Charge phones, tablets, and more with ease.

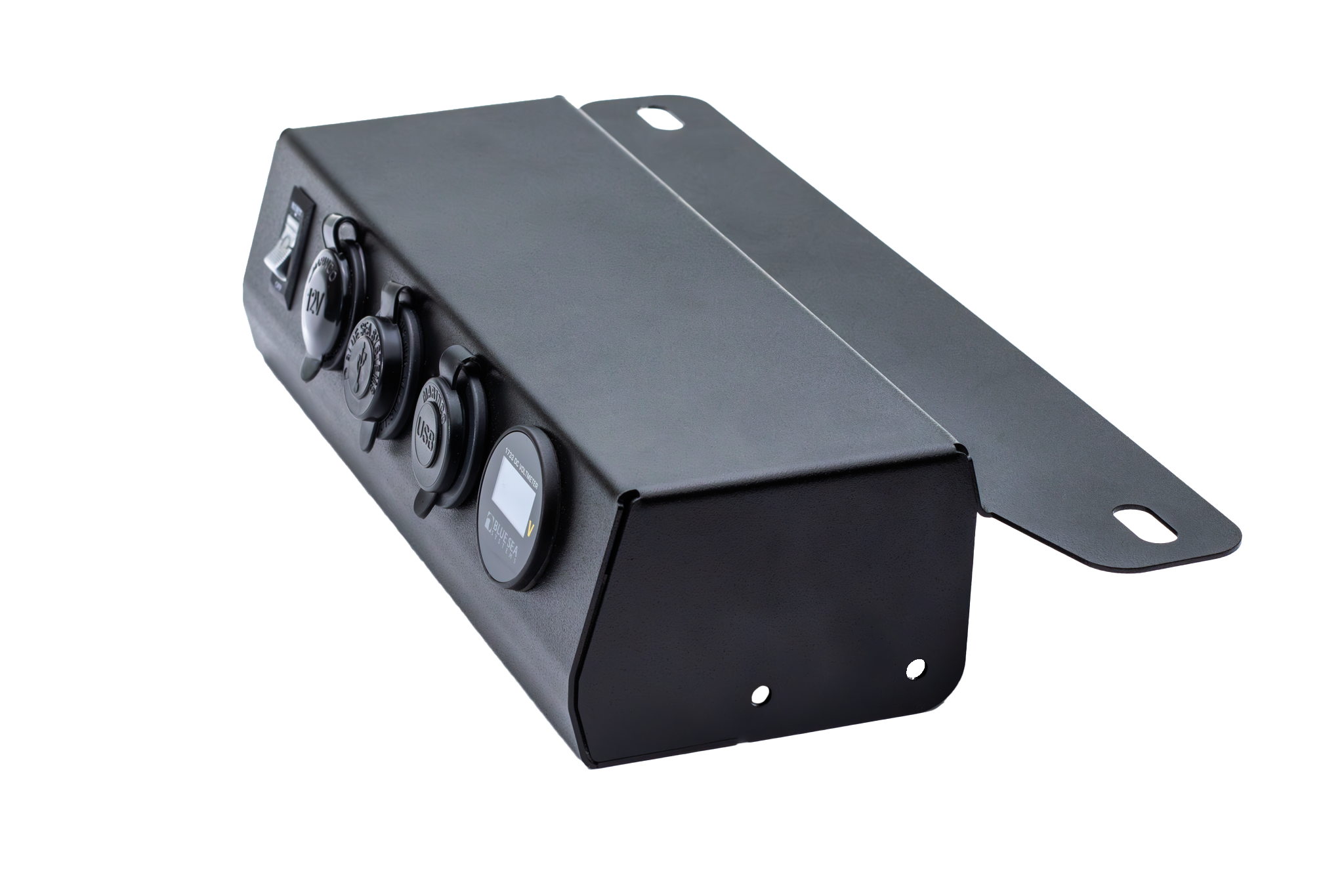

Customize Your Power Box
We know that everyone's needs are different so you can choose from these four options which outlets are placed in each slot of your Power Box. Then, we will wire it for you so you will be ready to install as soon as you receive it!
Dual USB-A & C
Dual USB-A
12V Power Outlet
Digital Voltmeter
Select which outlet is placed in each of the numbered slots (1-4) and we will build your power box according to your selections.
Select which outlet is placed in each of the numbered slots (1-4) and we will build your power box according to your selections.
Learn more about the Power Box
NEGATIVE SPADE TERMINAL
Connect to the negative piggyback spade terminal on the last outlet
POSITIVE SPADE TERMINAL
Connect to the open positive lead on the back of the Power Box switch
POSITIVE RING TERMINAL
Connect to the positive bus bar or positive battery post
NEGATIVE RING TERMINAL
Connect to the negative bus bar or negative battery post
20' CABLE WITH IN-LINE FUSE
Fully assembled harness includes a 20 amp fuse
Specifications
IN THE BOX
POWER BOX
Pre-wired with your chosen outlets installed.
20 Foot Cable
12-gauge wire harness with in-line fuse, high quality heat shrink connectors, covered in split loom for protection.
